How Transformers Are Used in Data Centers and AI Infrastructure

The artificial intelligence boom is not just about chips and algorithms. It is about electricity — massive amounts of it. A single AI training cluster can draw tens of megawatts, and with hyperscale data centers expanding at record speed, the electrical infrastructure behind AI has become a critical bottleneck.

Transformers, often overlooked in discussions about data center design, play a foundational role. They step down utility high voltage to usable levels, isolate sensitive equipment, and help maintain power quality. But AI workloads are different from traditional IT loads. They are more dynamic, more power-dense, and less forgiving of voltage disturbances.

For procurement managers, EPC contractors, and facility owners, understanding how transformers behave in AI-driven environments is no longer optional — it is a competitive necessity. This guide covers the key roles of transformers in modern data centers, the technical challenges introduced by AI, and practical selection criteria to ensure reliability, efficiency, and future readiness.

1. The Growing Power Demand of AI Data Centers

Global data center power consumption is projected to more than double by 2030, reaching approximately 945 TWh, according to the International Energy Agency. In the United States alone, more than 45 GW of new data center capacity is planned or under construction, with cloud providers investing over $100 billion annually.

AI workloads are particularly demanding. Unlike conventional servers that run at fairly stable utilization, AI training clusters cause sharp, unpredictable load swings. A transformer that works perfectly for a traditional enterprise data center may overheat or experience voltage regulation issues under AI load patterns.

Moreover, power density is rising. While traditional racks consumed 5–10 kW, AI racks now commonly exceed 30–100 kW per rack. This concentration of power increases the stress on distribution transformers, especially those operating at the medium-voltage to low-voltage interface.

2. The Three Main Transformer Roles in a Data Center

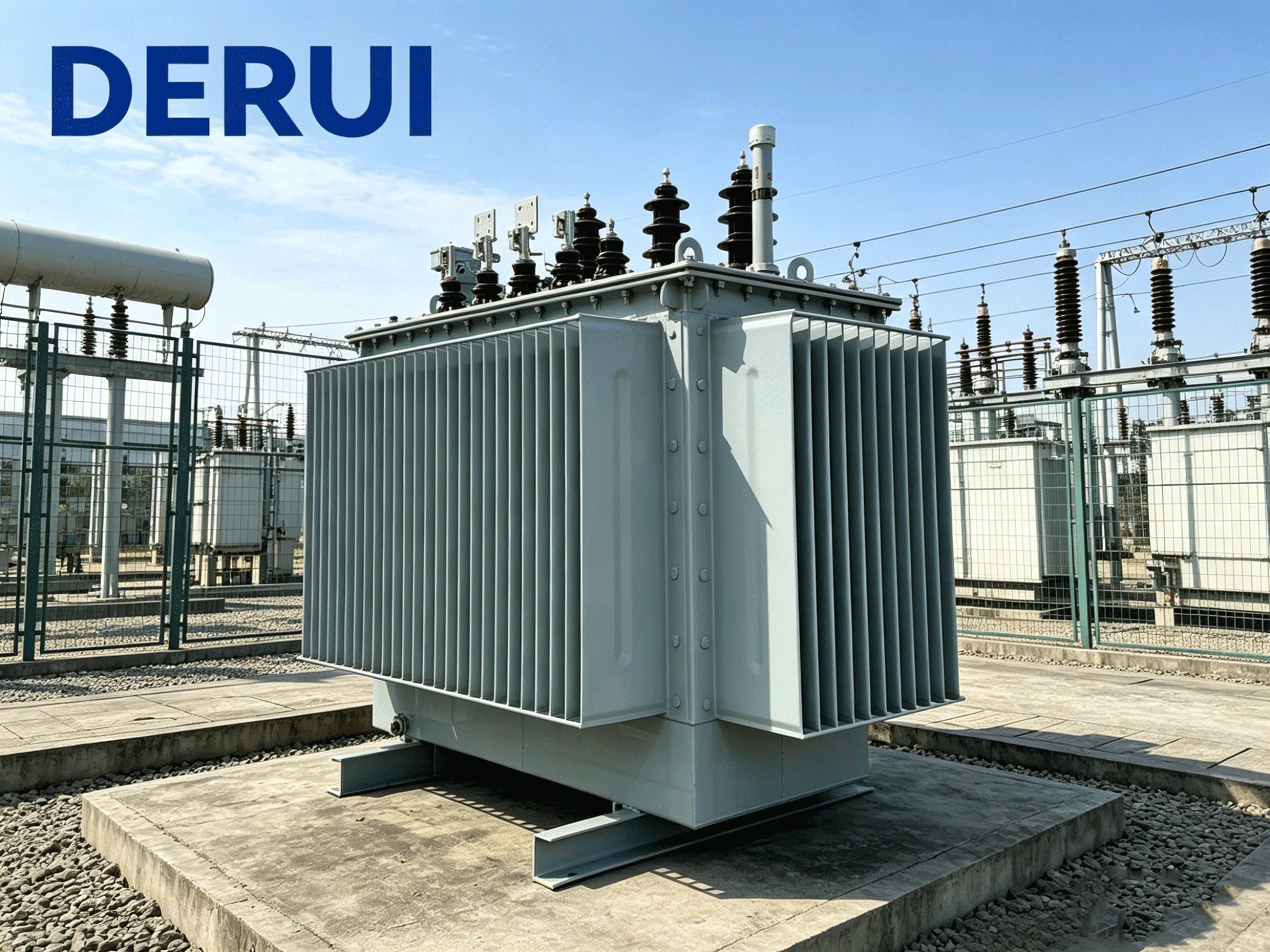

2.1 Primary Substation Transformers — Step down high-voltage grid power (e.g., 110kV to 20kV), outdoor, oil‑immersed, 5–40 MVA, N+1 redundancy.

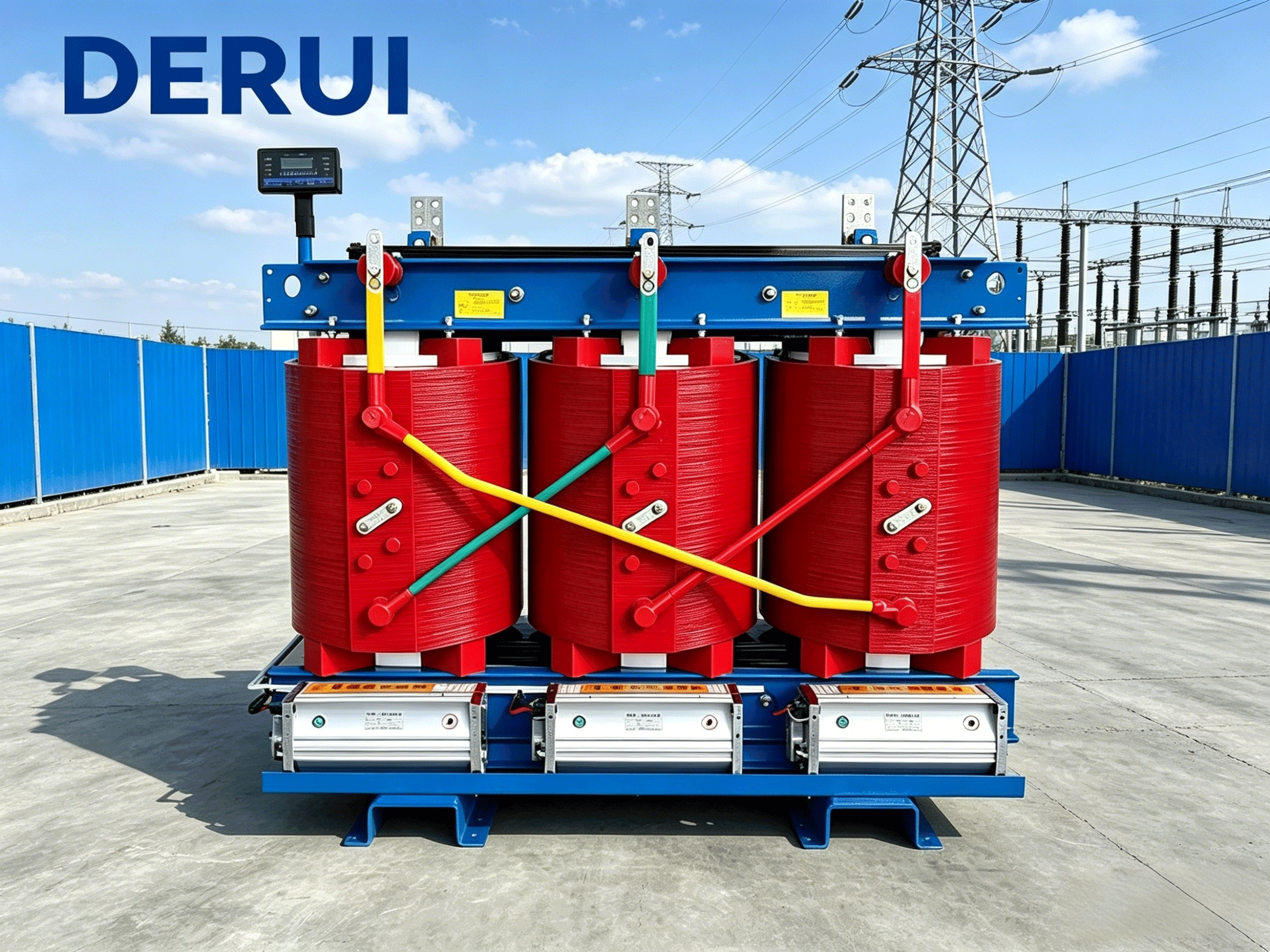

2.2 MV/LV Distribution Transformers — Installed inside, step down medium voltage (10–20 kV) to 400V/480V. Dry‑type, fire‑safe, 1–3.75 MVA, often integrated into power modules.

2.3 PDU (Power Distribution Unit) Transformers — Row or rack level, 10–200 kVA, final voltage adjustment and isolation. Must handle high inrush currents and frequent load changes.

A single hyperscale data center can contain hundreds of such transformers, making selection and maintenance a major engineering effort.

3. Dry-Type vs. Oil-Immersed: What Works Best Indoors?

For indoor power distribution, dry‑type transformers are the industry standard because of fire codes and safety considerations. Modern dry‑type designs with amorphous metal cores can achieve no‑load losses 70% lower than conventional silicon steel units, making them highly attractive for 24/7 operation.

👉 Best practice: Use oil‑immersed for the utility entrance (outdoor), and dry‑type for all indoor distribution stages. This hybrid approach optimizes safety, cost, and performance.

4. How AI Loads Affect Transformer Performance

4.1 Rapid Load Fluctuations — During model training, power draw can jump from 30% to 90% in seconds. This causes thermal cycling in transformer windings, accelerating insulation aging.

4.2 Harmonic Distortion — High‑frequency switching power supplies in GPU servers generate significant harmonic currents (3rd, 5th, 7th order). These increase copper loss and can cause localized overheating.

Mitigation strategies: Request a K‑factor rating (K‑4 to K‑20), specify electrostatic shielding, and consider higher impedance (6–8% instead of 4–5%) for short‑circuit current limitation.

5. Efficiency and Losses: The Hidden Cost in 24/7 Operation

Data centers never sleep. Transformer core loss runs 24/7, while load loss increases with AI training peaks. Example: A 2.5 MVA dry‑type transformer at 30% average load wastes >35,000 kWh/year from core loss alone using conventional silicon steel. Over 15 years, that exceeds 500,000 kWh. Upgrading to an amorphous metal core reduces that waste by 70%.

Tier 1 efficiency transformers (IEC 60076 or GB 20052‑2024) typically recover their higher upfront cost within 1–2 years through electricity savings.

6. The Global Transformer Shortage and Its Impact on Data Center Projects

Lead times that were 12–18 months pre‑2021 are now 3–5 years. For data center developers: order 12–18 months ahead, choose suppliers with in‑house core material inventory, and include delay penalties in contracts.

Derui Electric maintains strategic stocks of high‑grade silicon steel and copper, offering standard units in 12–16 weeks — far below the industry average.

7. Derui Electric: Transformers Designed for AI and Cloud Infrastructure

Why Derui Electric? IEC 60076 certified, amorphous core option (70% lower no‑load loss), K‑factor up to K‑20, electrostatic shielding standard. Lead times: 12–16 weeks standard, 10 days for small dry‑type units. Global logistics support and 24/7 English‑speaking technical assistance.

8. Future Trends: Solid‑State Transformers and 800V DC Distribution

Solid‑state transformers (SSTs) operate at high frequency, achieving >99% efficiency and direct AC‑to‑DC conversion. Cost and reliability remain barriers. 800V DC distribution reduces copper losses and is being piloted by major cloud providers. For most projects today, well‑specified dry‑type and oil‑immersed transformers remain the most practical choice.

9. Conclusion: Making the Right Choice for AI‑Ready Power

Transformers are strategic components. Consider: outdoor (oil‑immersed) vs indoor (dry‑type), harmonics (K‑factor), low‑loss designs (amorphous core), and supply chain reality (order early). Derui Electric combines engineering depth, flexible manufacturing, and global service.
