Every time electricity passes through a transformer, a small fraction of that energy is inevitably lost. In isolation, each transformer's losses may seem negligible. But when multiplied across millions of transformers worldwide—in substations, data centers, solar farms, industrial plants, and commercial buildings—the cumulative energy waste is staggering.
The European Commission estimates that approximately 2.9% of all energy generated across the EU and the UK is wasted through transformer losses alone. For facility owners, engineering firms, and large-scale energy consumers, every percentage point of efficiency translates directly into the bottom line.
👉 Get a Free Transformer Loss Evaluation: Send us your specifications to receive custom loss calculations, TCO analysis, and tailored transformer recommendations. [Request Free Evaluation →]
Understanding the two fundamental types of transformer losses—core loss (no-load loss) and copper loss (load loss)—is the first step toward making informed procurement decisions, reducing operational costs, and future-proofing electrical infrastructure.
1. What Are the Two Main Types of Transformer Losses?
1.1 Core Loss (No-Load Loss)
Core loss, also called no-load loss or iron loss, is the power consumed whenever a transformer is energized—regardless of load. It occurs continuously, 24/7/365. Caused by hysteresis loss and eddy current loss in the magnetic steel core.
1.2 Copper Loss (Load Loss)
Copper loss is power dissipated in the windings due to resistive heating when carrying load current. It is variable and increases with the square of current (I²R). Also includes additional losses from skin effect, proximity effect, and stray eddy currents.
| Parameter | Core Loss (No-Load) | Copper Loss (Load) |
|---|---|---|
| Nature | Fixed | Variable |
| Primary Cause | Hysteresis & eddy currents | Resistive heating (I²R) |
| Load Dependence | Independent | Proportional to square of load |
| Measurement Test | Open-circuit (no-load) test | Short-circuit (load loss) test |
| Dominates At | Light loads, standby | Full loads, peak hours |
2. How Transformer Losses Are Measured
Core Loss Measurement: Open-circuit test – rated voltage applied, other winding open. Constant loss.
Copper Loss Measurement: Short-circuit test – reduced voltage until rated current flows. Loss increases with I²R.
Both tests are defined in IEC 60076 and IEEE C57.12.00.
3. Efficiency at Different Load Levels
For a typical 75kVA dry-type transformer:
- No-load efficiency: ~90–92% (core loss dominant)
- Peak efficiency (≈50% load): ~97–98%
- Full-load efficiency (100% load): ~95–97% (copper loss dominant)
👉 Request a TCO Analysis: We help you calculate real operating costs—not just purchase price. [Get TCO Report →]
4. Why These Losses Matter: The Economic Impact of Inefficiency
A 2.5MVA transformer at 30% average load can waste >35,000 kWh/year from core loss alone. Over 15 years → >500,000 kWh wasted.
High-efficiency transformers reduce annual energy loss by ~21% (e.g., €9,800 saved per year). Payback typically 1–2 years.
TCO = Purchase Price + (A × No‑Load Loss) + (B × Load Loss). Class 1 units achieve 25–30% lower TCO than Class 3.
5. How to Reduce Transformer Losses: Material Innovations and Design Strategies
5.1 Core Material Upgrades: Amorphous metal cores reduce no-load losses by up to 70% vs silicon steel. Nanocrystalline ribbons further improve high-frequency performance.
5.2 Copper Loss Reduction: High-purity copper/optimized aluminum, multi-strap transposed conductors, optimized winding geometry, FEA analysis.
5.3 Smart Manufacturing: Automated assembly, inline testing, and real-time quality feedback ensure consistent loss performance.
5.4 Energy Efficiency Standards as a Guide: IEC 60076, GB 20052-2024 (Class 1 = 30–50% lower losses), EU Ecodesign.
| Efficiency Standard | Dry‑Type Gain | Oil‑Immersed Gain | Key Driver |
|---|---|---|---|
| GB 20052‑2024 Class 1 (vs Class 3) | 30–50% lower losses | 30–50% lower losses | High‑efficiency mandate |
| Amorphous metal vs silicon steel | up to 70% reduction | up to 70% reduction | Material upgrade |
| 2024 revision (10kV oil, Class 1) | – | 8.3% reduction | Standard tightening |
6. The Role of Transformers in Critical Infrastructure: AI Data Centers and Renewable Energy
AI data centers: power loads surge during training → heavy copper losses. Solid-state transformers (SST) achieve >99.8% efficiency, 1 MW/m³ density, 30% loss reduction.
Renewables: minimize no-load loss essential. Amorphous core, IP54/IP65, wide temp (-40°C to +55°C) for solar farms in Middle East, SE Asia.
7. Derui Electric: Low-Loss Transformers Built for High-Efficiency Applications
| Product Type | Capacity | Voltage | Low-Loss Features |
|---|---|---|---|

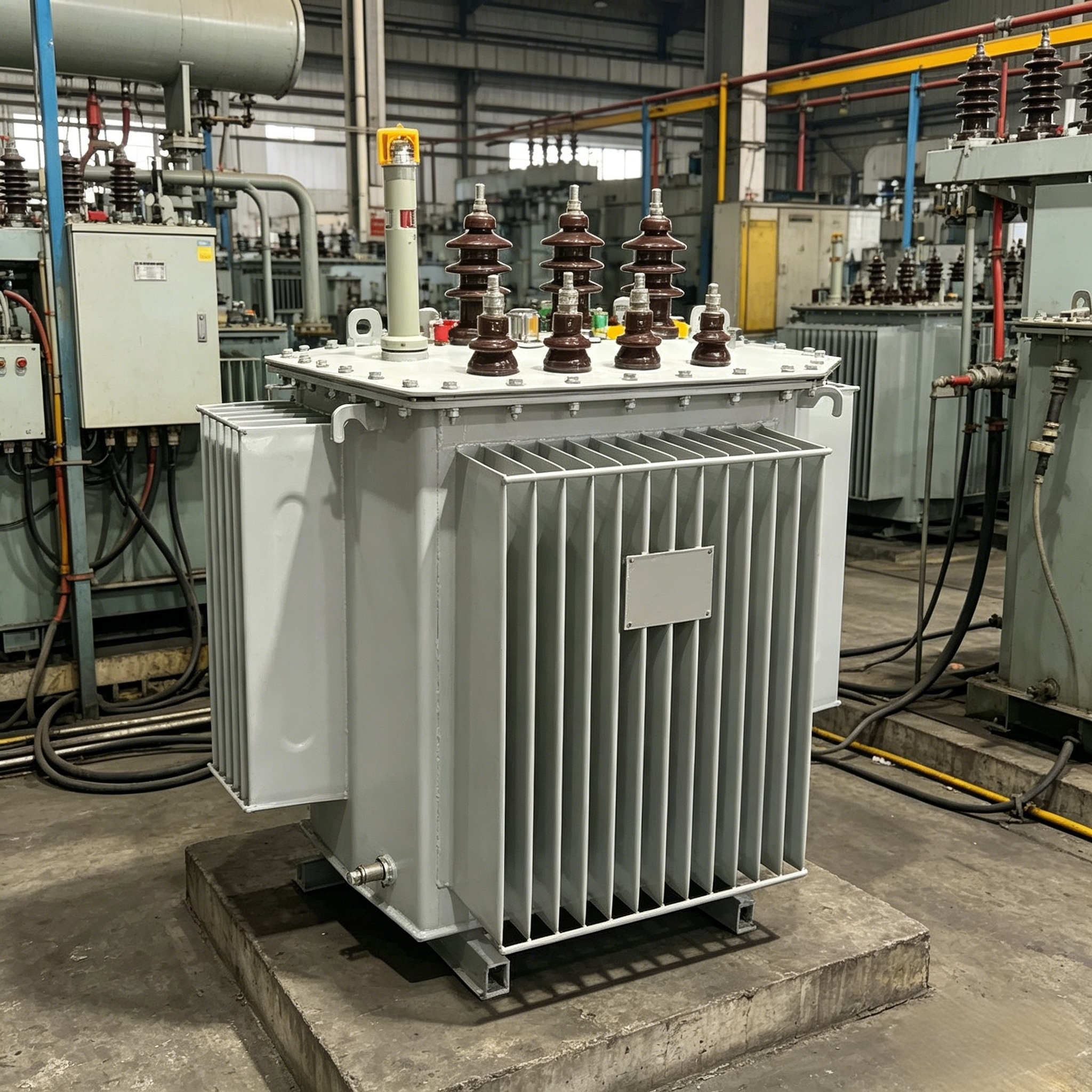

| Oil-Immersed Power Transformer | 50kVA – 100MVA+ | 10–220kV | Amorphous core (70% lower no-load loss) |
| Dry-Type Distribution Transformer | 50kVA – 3.75MVA | 10–35kV | Fire-safe, Class 1 ready, IP54-IP65 |
| MV/LV Packaged Substation | 50kVA – 10MVA | 10–35kV | Plug-and-play, low-loss dry-type core |
Why choose Derui: Class 1 efficiency, amorphous metal cores, harsh environment ready, full certifications (CE, CB, SGS, IEC 60076), fast delivery (12–16 weeks, 10 days for small dry-type).
👉 Get a Customized Transformer Quote: Tell us your requirements to receive loss calculations, a technical proposal, and competitive pricing. [Get Quote in 24 Hours →]
Frequently Asked Questions (FAQ)
Q1: How do I calculate the total cost of ownership (TCO) for my transformer?
A: TCO = Purchase price + (A × no-load loss) + (B × load loss), where A and B are loss capitalization factors based on your local electricity cost, load hours, and discount rate. Contact us for a free TCO worksheet.
Q2: What is the payback period for upgrading to an amorphous metal core transformer?
A: Typically 1–3 years, depending on load factor and electricity cost. For 24/7 continuous operation (e.g., data centers), payback can be as short as 12–18 months.
Q3: Are dry-type transformers less efficient than oil-immersed ones?
A: At similar capacity and voltage, modern high-efficiency dry-type transformers can achieve comparable or even lower no-load losses due to amorphous core designs. However, oil-immersed typically have better overload capacity and longer life.
Q4: How does the 2026 transformer shortage affect lead times for low-loss units?
A: Lead times have extended globally. Derui Electric maintains strategic material stocks, offering standard units in 12–16 weeks and small dry-type units in as few as 10 working days – significantly below industry averages.
Q5: What certifications should I look for when importing transformers?
A: Minimum IEC 60076, CE for European markets, CB for international recognition, and country-specific approvals (SASO for Saudi Arabia, EAC for Russia, etc.). Derui provides all these upon request.
8. Conclusion: Every Kilowatt Counts in the AI Era
Transformer losses are a design choice with enormous financial consequences. By prioritizing low-core-loss materials (amorphous metal), efficient winding designs, and international efficiency standards, you can dramatically reduce energy waste and TCO.
The global transformer shortage makes every procurement decision critical. Waiting is inevitable; accepting unnecessary losses is not.
